EK3000

UV-A/White Light LED Inspection Kit

Features:

Compact, lightweight lamp with two ultra-high intensity UV-A (365 nm) LEDs for inspection, plus a three-LED white light assembly for general illumination
Adjustable strap allows lamp to be worn on a hard hat or directly on the head for hands-free operation

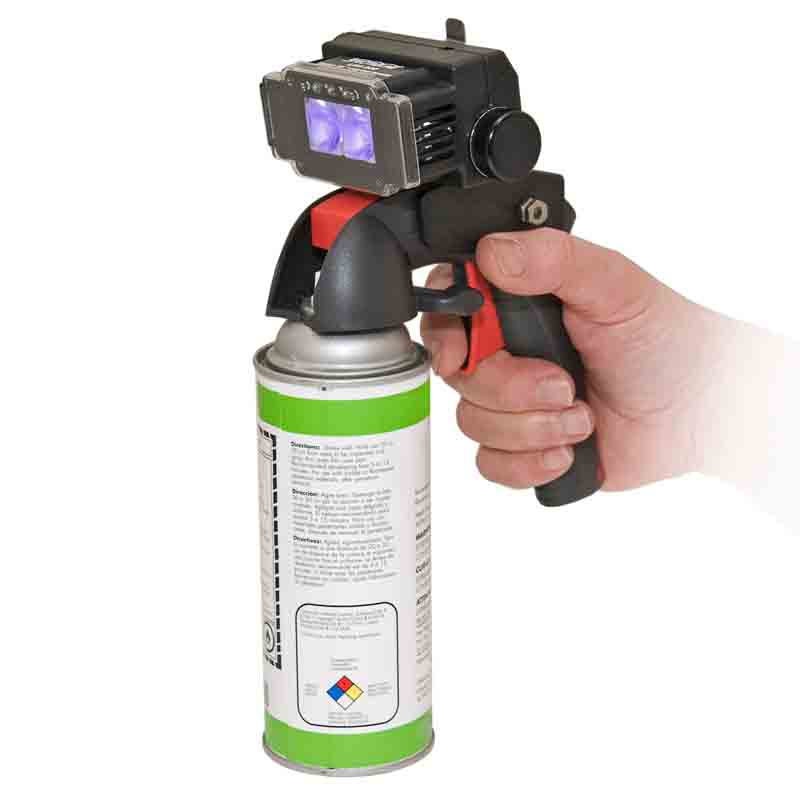

Unique lamp mount/sprayer attachment permits lamp and spray can to be mounted together for convenient, single-handed fluorescent yoke inspection
Built-in fan keeps lamp cool to maintain optimum UV-A intensity during extended use
Splash guard with integral particulate filter protects UV lenses and cooling fan from damage
100,000-hour LED service life
Powered by a rechargeable lithium-ion battery (included). Provides up to 75 minutes of continuous inspection between charges.

Technical Data:

Product Number:	EK-365
Light Sources:	2 UV LEDs, 3 white light LEDs
Dimensions:	Length: 3.75 in (9.5 cm) Width: 2.25 in (5.7 cm) Height: 1.85 in (4.7 cm)
Weight with battery:	8 oz (227 g)
Power Requirement:	One 3.7V 2200mA/Hr lithium-ion battery (rechargeable)
Run time:	75 minutes
Charge time:	4 hours (two batteries)
Charging cradle:	Two battery capacity with AC and DC cord sets. AC cord set available in 120V, 230V, 240V and 100V versions.
Nominal steady-state UV-A (365 nm) intensity	6 in (15 cm) — 20,000 µW/cm² 15 in (38 cm) — 4,500 µW/cm² 24 in (61 cm) — 2,000 µW/cm² 36 in (91 cm) — 1,000 µW/cm²

NOTE: All UV-A intensity readings taken with a Spectroline® AccuMAX™ Series meter
