VSP-Leak detection units have proven their worth especially because of their robust structure and suitability for use on construction sites. They offer talor-made solutions adjusted to the customer´s requirements and fields of application.

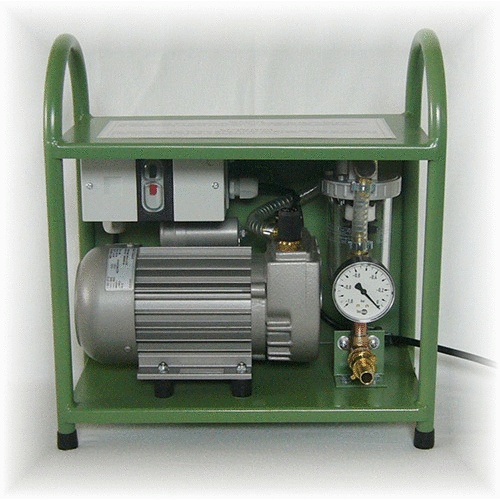

Low maintenance, self-lubricating vacuum pumps with a suction power approx. 8 or 10 m³/h built in a a stable welded steel tube framework with two carrying handles, equipped with vacuum meter, vacuum regulation valve, air filter, dirt filter, water separator, splash-proof protective motor switch as well as 3 m cable. If needed, we also deliver oil-lubricated or maintenance-free vacuum pumps for special needs up to 63 m³/h.

Leak detection unit VSP 1TS:

• Suction power at 100 kPa ca. 8 m³/h.

• End vacuum controllable up to appr. 15 kPa, corresp. negative pressure up to app. -85 kPa,

• Mains supply 230 V / 50 Hz, Power draw 0,37 kW.

• Measurements approx. 440 x 200 x 400 mm.

• Weight appr. 19 kg.

Leak detection unit VSP 2TS:

• Suction power at 100 kPa ca. 10 m³/h.

• End vacuum controllable up to appr. 15 kPa, corresp. negative pressure up to app. -85 kPa,

• Mains supply 230 V / 50 Hz, Power draw 0,37 kW.

• Measurements approx. 480 x 360 x 310 mm

• Weight appr. 29 kg.
