UCI Hardness Tester alphaDUR mini
The alphaDUR mini is the small and handy variant of the alphaDUR which has been successfully used in hardness testing since many years. The technology is identical and the accessories are compatible.

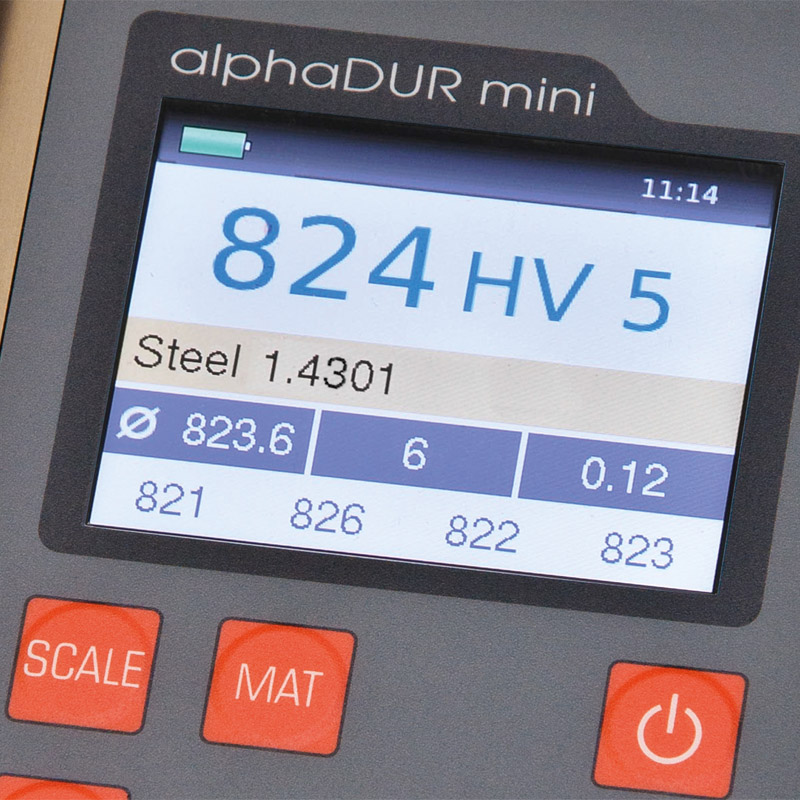

The operation of the alphaDUR mini is very easy because all information is shown on the large display. Hardness scale and material can quickly be changed by special keys.
Measurements can be done fast and accurate. The measured value is displayed directly after the test load has been applied. A test load between 1 (HV 1) and 10 kg HV 10) can be chosen depending on the application and the sample surface.
Main Features:
- Fast and easy hardness testing
- Measuring method according to DIN 50159 and ASTM A1038
- Robust metal casing
- Large colour display
- Built-in Li-ion battery
- Extensive storage and statistical functions
- USB interface and PC software
Technical Specifications:
| Hardness scale | HRC, HV, HB, HRB and tensile strength |
| Test load | 10, 20, 30, 49 or 98 N, depending on the UCI probe |
| Display | Colour LCD 320 x 240 pixels |
| Interface | USB |
| Data memory | 100,000 data records with date, time and GOOD/BAD rating |
| Statistics | Average value, minimum, maximum, standard deviation |
| Battery | Built-in Li-ion battery, battery life approx. 8 h, rechargeable by charging adapter or PC-USB |
| Dimensions | 135 x 80 x 23 mm |
| Weight | Device 320 g, probe 190 g |
| Minimum sample thickness | Approx. 5 mm (depends on the dimension and the shape of the sample) |
