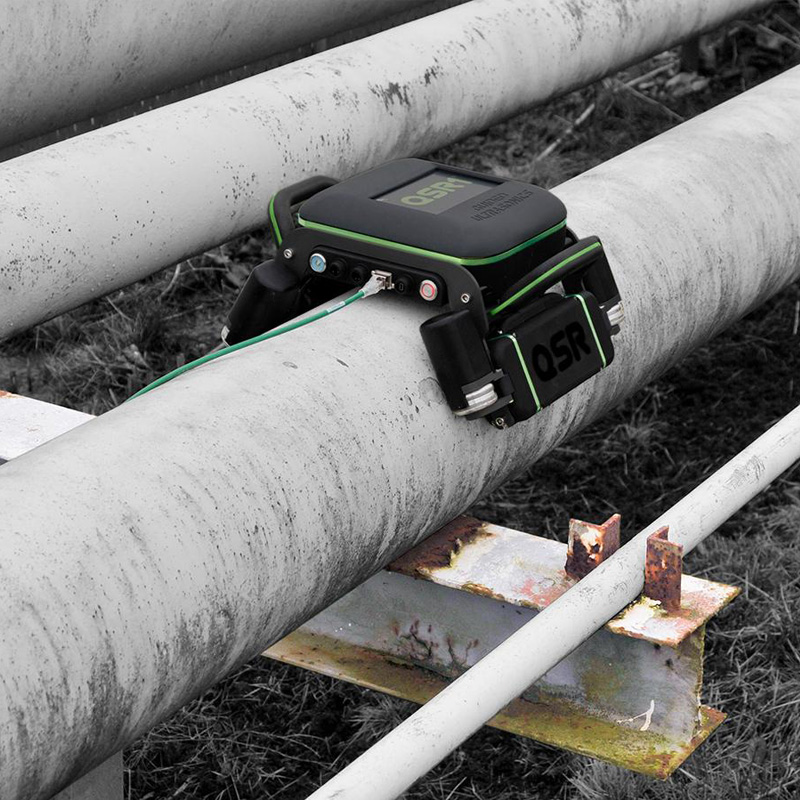

The QSR1® is GUL’s quantitative short range (QSR) device, incorporating the latest guided wave technology and hardware.
The system is designed to semi‑automatically scan predefined sections of straight pipelines for corrosion under pipe supports (CUPS).
The QSR1® can provide a quantitative measure of the average wall, as well as the minimum remaining wall thickness.
This instrument is suitable for motorised guided wave scanning on predefined sections of straight pipelines, with the added compatibility to operate with GUL’s cloud‑based platform.
Specifications:
|
Nominal Pipe Sizes |
6" to 24" (DN 150 to 600) |
|
Thickness |
6mm to 13mm (¼" to ½") |
|
Operating Temperature |
-20° to +70°C (0 to 160°F) |
|
Clearance |
Varies according to diameter.
Special frames available for limited clearance. |
