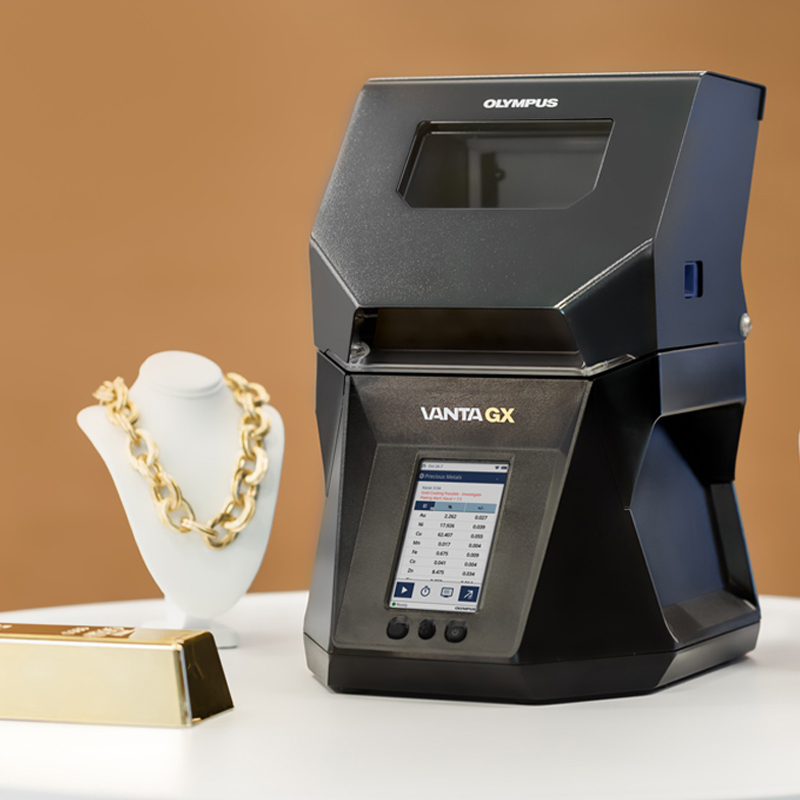

The GX model is a bench top metal analyzer that is essential for users who work with precious material such as gold, jewlery and other valuable metal-based items. within seconds it can identify the metallurgic composition, the authenticity and karatage of the valuable item tested, also it identifies fake items with gold plating and detects less valuable and hazardous material.

spacifications:

• weight: 10KG (22LB)
• excitation source: 2-watt X-ray tube: 35 kV, 50 μA maximum, Tungsten (W) anode
• detector:

Silicon PIN diode (example: P/N: VGP-PM)
Silicon drift detector (example: P/N: VGS-PM)
Thermo-electrically cooled, high resolution

• display: Full color touch-screen display: 800 × 480 (WVGA) 16-bit transflective LCD with capacitive touch screen supporting gesture control
• camera: Full-color VGA camera
